Model 12 Head Extended Tie Rod Mount (ISO MX3)
hese mounts are for straight line force transfer applications head extended tie rod mount is recommended for tension (pulling) applications.The mounting surface should be flat and the frame on which the cylinder is mounted must be sufficiently rigid to resist bending moments.On head mount applications, the cartridge provides a pilot diameter to align the rod in the mounting frame.The force on the rod should be perpendicular to the mounting surface and coincide with the centerline of the piston rod. For eccentric loads, the larger of the two available rods in each bore size is recommended. Stop tubes should also be considered.

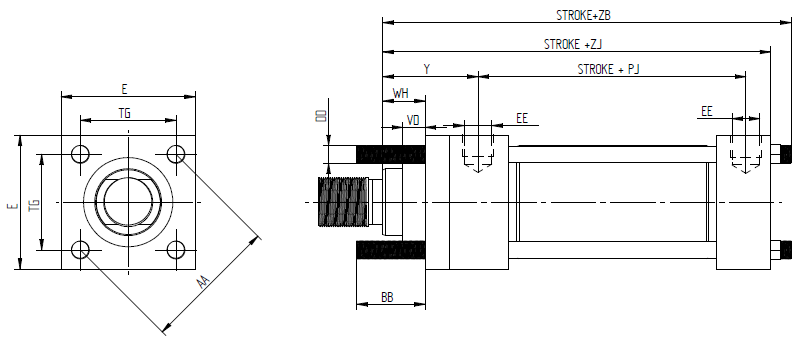

| Bore | AA | BB | DD | E | EE BSP | TG | WH | VD | Y | Stroke+ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | ZB | ||||||||||
| 25 | 40 | 19 | M5 x 0.8 | 40 | 1/4" | 28.3 | 15 | 5 | 50 | 53 | 114 | 121 |
| 32 | 47 | 24 | M6 x 1 | 45 | 1/4" | 33.2 | 25 | 5 | 60 | 56 | 128 | 137 |
| 40 | 59 | 35 | M8 x 1 | 63 | 3/8" | 41.7 | 25 | 5 | 62 | 73 | 153 | 166 |
| 50 | 74 | 46 | M12 x 1.25 | 75 | 1/2" | 52.3 | 25 | 5 | 67 | 74 | 159 | 176 |
| 63 | 91 | 46 | M12 x 1.25 | 90 | 1/2" | 64.3 | 32 | 5 | 71 | 80 | 168 | 185 |
| 80 | 117 | 59 | M16 x 1.5 | 115 | 3/4" | 82.7 | 31 | 5 | 77 | 93 | 190 | 212 |
| 100 | 137 | 59 | M16 x 1.5 | 130 | 3/4" | 96.9 | 35 | 5 | 82 | 101 | 203 | 225 |
| 125 | 178 | 81 | M22 x 1.5 | 165 | 1" | 125.9 | 35 | 5 | 86 | 117 | 232 | 260 |
| 160 | 219 | 92 | M27 x 2 | 205 | 1" | 154.9 | 32 | 5 | 86 | 130 | 245 | 279 |
| 200 | 269 | 115 | M30 x 2 | 245 | 1-1/4" | 190.2 | 32 | 5 | 98 | 165 | 299 | 336 |
